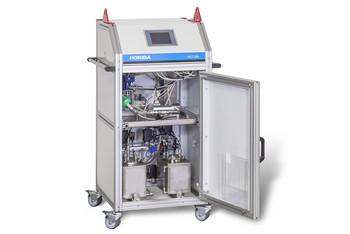

This product's features have been integrated into a new model. Continue to successor

FQ-2100DP

Fuel Flow Measurement

The FQ-2100DP Fuel Consumption Measurement System allows measuring fuel mass and volumetric flow rate continuously over the whole measurement range from 0.2…220 l/h (optional 0.5…300 l/h) with high accuracy.

The FQ-2100DP can be applied to any engine, powertrain and vehicle test stand used for R&D, quality management, and production; and is an important tool for the development of internal combustion engines. The availability of standard as well as highly dynamic interfaces ensures easy integration into test automation systems. All components included in the system are manufactured to proven industrial quality standards and are available from multiple sources.

Segment: Automotive

Division: Mechatronics

Manufacturing Company: HORIBA Europe GmbH

High measurement accuracy over the whole measurement range
For all established liquid fuels including Ethanol up to 100%
Optional fast data exchange with 100 Hz ( EtherCat, CanOpen)
Easy integration via standard interfaces
Easy, engine-specific adjustment of parameters like fuel pressure, temperatures, and circulation rates for a wide range of applications
Automated fuel change and venting routines
Continuous evaluation of statistical characteristic values
User friendly touch panel

Fuel Conditioning

Integrated pumps and temperature control system ensure an accurate temperature level for measuring and for the engine fuel circuit. Installed control modules enable the operator to adjust fuel pressures and circulation rates in correlation with given, engine-specific parameters. An optional heating module makes fuel outlet temperatures up to 60 °C possible. An optional vacuum controller adjusts outlet pressures down to -0,5bar relative. For pressures above 1 bar relative, an optional fuel inlet regulator adjusts the customer’s fuel supply pressure to the required FQ-2100DP system pressure.

A control unit with an operator touch panel directly integrated into the system ensures handling of the FQ-2100DP. This unit gives a quick and easy system overview and reports the current measurement data and parameter settings. A remote control option via various standard interfaces makes integration into test automation systems possible.

Measuring range	0.2...220 l/h (300 l/h) 0.15...165 kg/h (225 kg/h)
Temperature control range*** with optional heating module	+15...+40 ºC* max. 60 °C
Temperature Measurement uncertainty	0.5 ºC
Temperature Control stability (steady state conditions)	0.05 °C
Pressure control range fuel outlet with option vacuum controller	-0.3...9 bar -0.5...9 bar
Fuel return pressure	-0.5...2 bar relative****
Fuel circulation rate adjustable	60 ... 360 l/h (optional up to 940 l/h)
Fuel Supply pressure with option inlet pressure Regulator	0.5... 1 bar max. 5 bar
Fuel supply temperature	15...30 °C
Fuel supply feed	max. 350 l/h
Cooling water supply pressure	0.2...4 bar
Cooling water supply/ return temperature	6...15 °C / 12…21 °C
Cooling water supply feed	ca. 800 l/h
Electrical supply voltage	230 V
Electrical supply frequency	50/60 Hz
Electrical supply current (without heating)	4 A
Overall dimensions W x H x D	1150 x 1320 x 360 mm
Weight	ca. 200 kg
Ambient temperature	+5...+40 °C
Type of protection (electr. Part)	IP 44
Color	RAL 7035

* Depending on cooling water

** Depending on heat returned by engine

*** Max. heat transfer from engine: 2kW

**** Typical -0.1...1.5 bar: the return pressure is depending on the additional pressure loss in the return pipe caused by the circulation volume and the Diameter of the pipe. There is the possibility of gas Evolution in the fuel if the return pressure is to low adjusted.
