LabRAM Soleil

LabRAM Soleil Raman Microscope full view

Raman Spectroscope - Automated Imaging Microscope

The LabRAM Soleil™ Confocal Raman Microscope is a cutting-edge instrument with advanced automation and imaging features.

With 50 years of expertise behind it, this high-performance microscope offers precise molecular and structural characterization, with ultrafast imaging. Its compact design and laser-safe operation make it suitable for diverse laboratory settings.

From material science to pharmaceuticals and nanotechnology, LabRAM Soleil™ facilitates comprehensive sample characterization and analysis with efficiency and precision, making it an indispensable tool for researchers and industrial users alike.

Move from microscopy to the nanoscopy world with an easy AFM upgrade.

Segment: Scientific
Manufacturing Company: HORIBA France SAS

Multimodal Confocal imaging in a compact footprint

LabRAM Soleil™ offers great variety of optical viewing modes and hyperspectral imaging features in a compact and laser safe design:

  • < 1m² footprint
  • Large Class 1 sample compartment
  • Reflection (episcopic) /transmission (diascopic) illumination
  • Imaging in optical microscopy bright field/dark field
  • ViewSharp 3D Topography
  • QScan™ high quality scanning technology for 3D confocal imaging with Laser light-sheet illumination - mapping without moving
  •  XYZ 3D confocal imaging, Z-profile (single-point or layer by layer with QScan™ option)
  • Super-low frequency (30 cm-1) Raman scattering as standard
  • Photoluminescence (PL), electroluminescence, photocurrent
  • Nanoscale spectroscopy: NanoRaman (TERS), NanoPL, and Cathodoluminescence with our AFM and SEM extensions


Focus on your job, it takes care of the rest!

Forget long and tedious preparation operations before getting your Raman image. LabRAM Soleil™ offers advanced automated functions and, in combination with the EasyImage™ wizard, it dramatically reduces parameter setting time and ensures maximum stability and reproducibility:

  • True self-operating system
  • EasyImage™ guided operation wizard
  • Auto-alignment: automatically check and readjust the alignment within a few seconds according to environmental conditions
  • SmartID™: no more risk to use the wrong objective or wrong parameters
  • Remote maintenance


Ultrafast imaging: Raman imaging has never been so fast!

Due to a higher optomechanical stability, advanced and patented video Raman matching technology, LabRAM Soleil™ makes possible high-quality Raman imaging up to 100 times faster than a conventional Raman spectrometer.

  • SmartSampling™: New mapping algorithm, acquiring most contributive points first, is turning hours maps into minutes.
  • TurboDrive™: Fast grating turret drive - up to 400 nm/s
  • 4 different SWIFT™ functions:
    • SWIFT™
    • SWIFT™ XS: Ultra Mode: Fast Raman imaging: up to 1400 spectra/s - High Contrast Mode: fast readout rates and enhanced signal
    • SWIFT™ XR: Fast large spectral range acquisitions using Multi Windows mode
    • Repetitive SWIFT™: Continuously improve the S/N ratio over time


Facing all analytical challenges:

From materials studies to polymers, and biological to pharmaceutical laboratories, LabRAM Soleil™ can be easily adapted for each application.  Its advanced modularity and flexibility makes it a perfect Raman microscopy system, for both academic research laboratories and industrial quality control departments.

  • Up to 4 internal lasers and 6 different filters
  • 4-grating turret exchangeable in less than a minute
  • Super-low frequency as standard: down to 30 cm-1 Raman shift
  • Large sample compartment: 444(H) x  509 (L) x 337 (W) mm
  • High robustness and simplified maintenance operation


LabSpec6 software: harness LabRAM Soleil™ full power with ease!

LabSpec 6 software offers a great modularity with the exclusive LabStore Apps. Any user can configure his software according to his own needs. Efficiency and performance are combined with ease-of-use. The modern and intuitive design of the software makes it easier than ever to achieve a perfect Raman image. No need to be an expert anymore.

  • Advanced Multivariate analysis MVAPlus™ : Process megapixel datasets with ease and maximum accuracy for molecule identification and quantitation, even with “difficult” samples
  • ProtectionPlus ensures compliance with FDA 21 CFR Part 11 and GMP/GLP requirements
  • ParticuleFinder™ automatically combines morphological and chemical analysis to classify particles in seconds
  • EasyImage™ automated workflow to obtain Raman image in a single click
Wavelength rangeUV-VIS-NIRBroadband high throughput achromatic mirror-based system, optimized from 300 nm to 1600 nm without changing optics.
Standard Laser Wavelengths325, 405, 473, 532, 638, 785 nmTypical lasers for Raman and PL. Other wavelengths upon request.
Spectrometer scanning speedUp to 400 nm/sWith 600g/mm grating, mounted on standard Turbodrive 4-grating turret, for fast Raman, PL spectral map acquisitions.
Number of gratingsunlimited4 grating exchangeable motorized turret.
Fast Imaging<1ms/spectrumSWIFT, SWIFT XS EMCCD, SWIFT repetitive, SWIFT extended Range and SmartSampling for ultrafast imaging.
3D confocal slicing with laser lightsheet illuminationQScan (patent)Typical 2 μm thick 100 x 100 μm2 laser lightsheets for large area 2D/3D confocal imaging.
Standard wavenumber cut-off30 cm-1With edge filters for 532, 638 and 785 nm wavelengths, injection rejection, >99% transmission.
Laser auto-alignment procedure15 sOptional ultrafast sample-independant laser auto-alignment allowing remote maintenance.
LasersUp to 4 built-in solid-state lasers + 1 external laserNUV to NIR wavelengths available.
Spectroscopic motorized modalitiesUp to 6 laser filtersRaman, PL, Super Low Frequency…
Rayleigh Filter orientationIndividual filter computer controlledFactory preset & user adjustable angle to adapt with sample reflectivity.
AFM / SEM couplingYesBuilt-in horizontal exit for direct Atomic Force microscope coupling, optional fiber entrance for SEM coupling with RCLUE.
Operating temperature range18-28 °CNon condensing
Dimensions (W x D x H in mm)
Weight (kg)

< 900 x 800 x 810
120 kg

~1 cubic meter, including lasers, CDRH enclosure, electronics and cooling to save space in your laboratory
Power consumption< 600 W for a fully loaded configurationEco-friendly and safe design, with built-in class 1 enclosure, low power consumption electronics and cooling, 1 power cable EU / US type
Reverse Engineering : Investigation on the Material Trends in Lithium-ion Battery
Reverse Engineering : Investigation on the Material Trends in Lithium-ion Battery
We obtained lithium-ion battery cells from 3 different commercial electric vehicles manufactured by an automotive company for the reverse engineering investigation. We disassembled and analyzed each of the cathode sheets, the anode sheets, and the separator sheets using multiple analytical instruments.
Read more
Multimodal spectroscopy techniques for nanostructured materials characterization
Multimodal spectroscopy techniques for nanostructured materials characterization
In this article, we present the combination of Raman spectroscopy, Photoluminescence and SEM-CL techniques, where the instruments weren’t physically connected. Smart nanostructured materials require a comprehensive understanding of their morphology, elemental and chemical composition. nanoGPS Suite solution allows a colocalized combination of a variety of microscopy techniques, providing a full characterization of nanostructured materials and a precise superimposition of the results obtained.
Read more
Quality control of sugar content in beverages using Raman spectroscopy
Quality control of sugar content in beverages using Raman spectroscopy
We all consume or have all consumed sugary drinks at least once. Sugar content of those drinks must be regulated. Also, to avoid those properties of sugar, it has been replaced by sweeteners. These have lower sweetness than natural sugars. Whether it is sugar or sweetener, their content just be controlled. Here, we demonstrate that Raman spectroscopy is one solution to identify and evaluate sugar/sweetener concentrations in a quality control process.
Read more
Quality control of hand sanitizer gels and 70% alcohol products using Raman spectroscopy
Quality control of hand sanitizer gels and 70% alcohol products using Raman spectroscopy
Disinfecting your hands with hydroalcoholic gel has become a daily practice. In the meanwhile, 70° alcohol has been used for even longer to disinfect wounds. But, to remain efficient, the alcohol concentration of these products must not be below a defined threshold and must be controlled. This application note demonstrates how to evaluate alcohol concentrations in a quality control process with Raman.
Read more
Resolving micron-sized layers in multilayer films with Raman microscopy by cross-section analysis and confocal depth profiling
Resolving micron-sized layers in multilayer films with Raman microscopy by cross-section analysis and confocal depth profiling
Multilayer polymer films, composed of different materials, are used in a variety of industrial applications. The analysis of these multilayers is important to support, especially for safety and performances control. Here, we use Raman microscopy by cross-section analysis and confocal depth profiling to investigate the chemical composition of two multilayers films.
Read more
Co-localized microscopy techniques for pyrite mineral spatial characterization
Co-localized microscopy techniques for pyrite mineral spatial characterization
In this study we have chosen to investigate pyrite and its surrounding minerals in order to identify the different mineral phases as well as the chemical variations from micro- to nano-scale. Using the different microscopes instruments and being co-localized allows a comprehensive characterization of the sample and a precise superimposition of all the images.
Read more
Analysis of microplastics in hand sanitizers using ParticleFinder™
Analysis of microplastics in hand sanitizers using ParticleFinder™
Due to the corona crisis, hand sanitizer became part of our daily routine. However, their use is not without potential risks because of their microplastics content. HORIBA offers all the tools necessary to analyze and characterize the presence of Microplastics in hand sanitizers: High-performance Raman microscopes, dedicated filtration kit, and especially the powerful particles detection software ParticleFinder™. We analyzed 3 samples of hand sanitizers, from different countries, and we were able to identify the different plastic content of each.
Read more
Raman imaging of a millimetre-sized core-shell SiO2@TiO2 sphere
Raman imaging of a millimetre-sized core-shell SiO2@TiO2 sphere
In recent years, core-shell particles have attracted significant attention due to their smart properties. Size, morphology, and composition are the key features that strongly affect the performance and suitable applications of such structures.
Read more
Proton Exchange Membrane Fuel Cell Bipolar Plate Analyses by GD-OES and Raman
Proton Exchange Membrane Fuel Cell Bipolar Plate Analyses by GD-OES and Raman
Bipolar plates are key components of proton exchange membrane fuel cells – they notably distribute fuel gas and air and conduct electricity. Various materials and surface treatments have been developed to improve their properties. Here, we described a reverse engineering study on a bipolar plate from a commercial vehicle using GD-OES and Raman spectroscopy. The analyses revealed that the plate had an amorphous carbon coating on a titanium base plate.
Read more
Characterization of protective mask fibers by Raman microscopy
Characterization of protective mask fibers by Raman microscopy
Due to Covid-19, a wide choice of protective masks are now on the market. These types of masks are distinguished, in particular, by their different efficiencies linked to their filtration capacity. These differences in protective properties have therefore made it essential to characterize the composition of the masks. In this paper, we present why LabRAM Soleil™ confocal Raman multimode microscope is the perfect tool for studying the distribution and composition of mask fibers.
Read more
Optical Micro-spectroscopies on a Path to Identify the Source of Life
Optical Micro-spectroscopies on a Path to Identify the Source of Life
In this article, we present how our Raman and X-Ray Fluorescence microscopies can be combined to shed some light on the origins of the universe. We show some examples on a meteorite piece and on water inclusion in quartz matrix.
Read more
Three Dimensional Raman Imaging
Three Dimensional Raman Imaging
Segmented channel waveguides have been fabricated in single crystal KTiOPO4 through a topotactic process of partial cation exchange. The ion-exchanged waveguides maintain the high nonlinear susceptibility of KTiOPO4 to function as frequency doubling laser light sources. We apply three dimensional (3D) Raman imaging to understand and characterize the changes to the chemical bonding and crystalline structure as well as measure the volumetric structure of the waveguide segments.
Read more

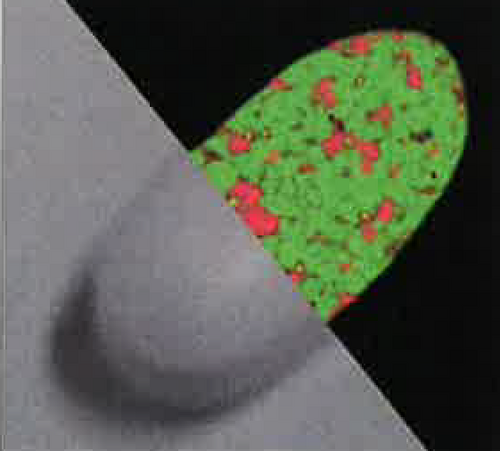

Pharmaceutical compounds distribution and cosmetic products analyzed by confocal Raman spectroscopy
Pharmaceutical compounds distribution and cosmetic products analyzed by confocal Raman spectroscopy
In the final step of the formulation process, pharmaceutical and cosmetic industries have to control their products to check if the compounds' distribution in the final product, or in its application form, i.e. dispersed on a skin for an intracutaneous product, are homogenous and stable in order to guarantee the product's efficacy. In this paper, we present why confocal Raman microscopy is an excellent tool for product characterization after formulation.
Read more

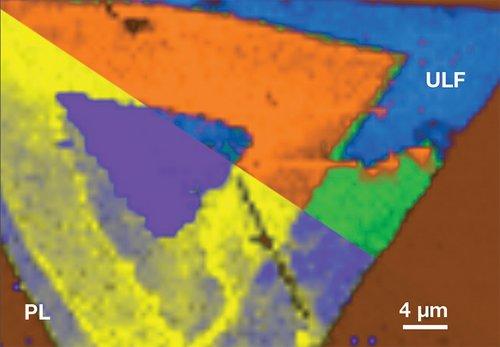

Structural characterization of WS₂ flakes by Photoluminescence and ultra-low frequency Raman spectroscopy on a unique multimode platform
Structural characterization of WS₂ flakes by Photoluminescence and ultra-low frequency Raman spectroscopy on a unique multimode platform
2D materials are state-of-the-art in nano- and opto-electronics. Characterizing their structural properties with a non-destructive approach at the micron scale is very important. We demonstrate in this paper how LabRAM Soleil™ confocal Raman multimode microscope is the perfect tool for these materials characterization.
Read more
Raman Microscopy Applied to Polymer Characterization: An Overview
Raman Microscopy Applied to Polymer Characterization: An Overview
Raman microscopy is an excellent tool to address the polymer research. Raman microscopy can be used to characterize raw materials, to inline or outline monitor polymerization process, to investigate orientation and crystallization changes, and also to control the quality and traceability of genuine products, by understanding defects and compounds distribution. In this article we present how HORIBA Raman microscopy solutions can support the polymer chemical and structural understanding.
Read more

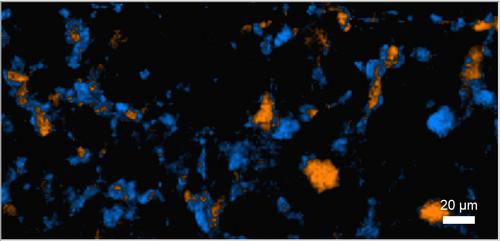

Polymorphisms characterization: when Raman microscopy supports the pharmaceutical industry
Polymorphisms characterization: when Raman microscopy supports the pharmaceutical industry
Polymorphisms characterization of active molecules is one piece of important information for the pharmaceutical industry, not only on raw powders, but also in the final form. Raman microscopy remains the most appropriate solution for this application. In this paper, we present an example of polymorphisms characterization by Raman microscopy using the super low frequency module.
Read more
Identification and characterization of aeroallergens based on morphological and chemical features
Identification and characterization of aeroallergens based on morphological and chemical features
The prevalence of allergies in the world is between 30 and 40%. Even though it exists medical treatments such as antihistaminic and desensitization this number is constantly increasing. Thus, in this application note, the identification and chemical characterization of aeroallergens by Raman microscopy will allow to prevent people who are affected by respiratory allergies of the presence of this type of allergens in indoor and outdoor air.
Read more

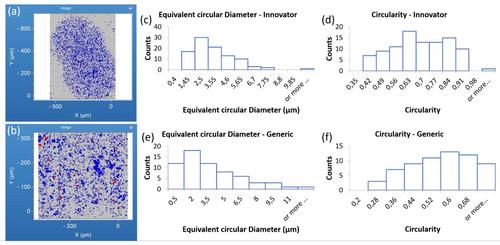

Morphological and chemical characterization of pharmaceutical formulations
