Raman Spectroscopy Applied to the Lithium-ion Battery Analysis

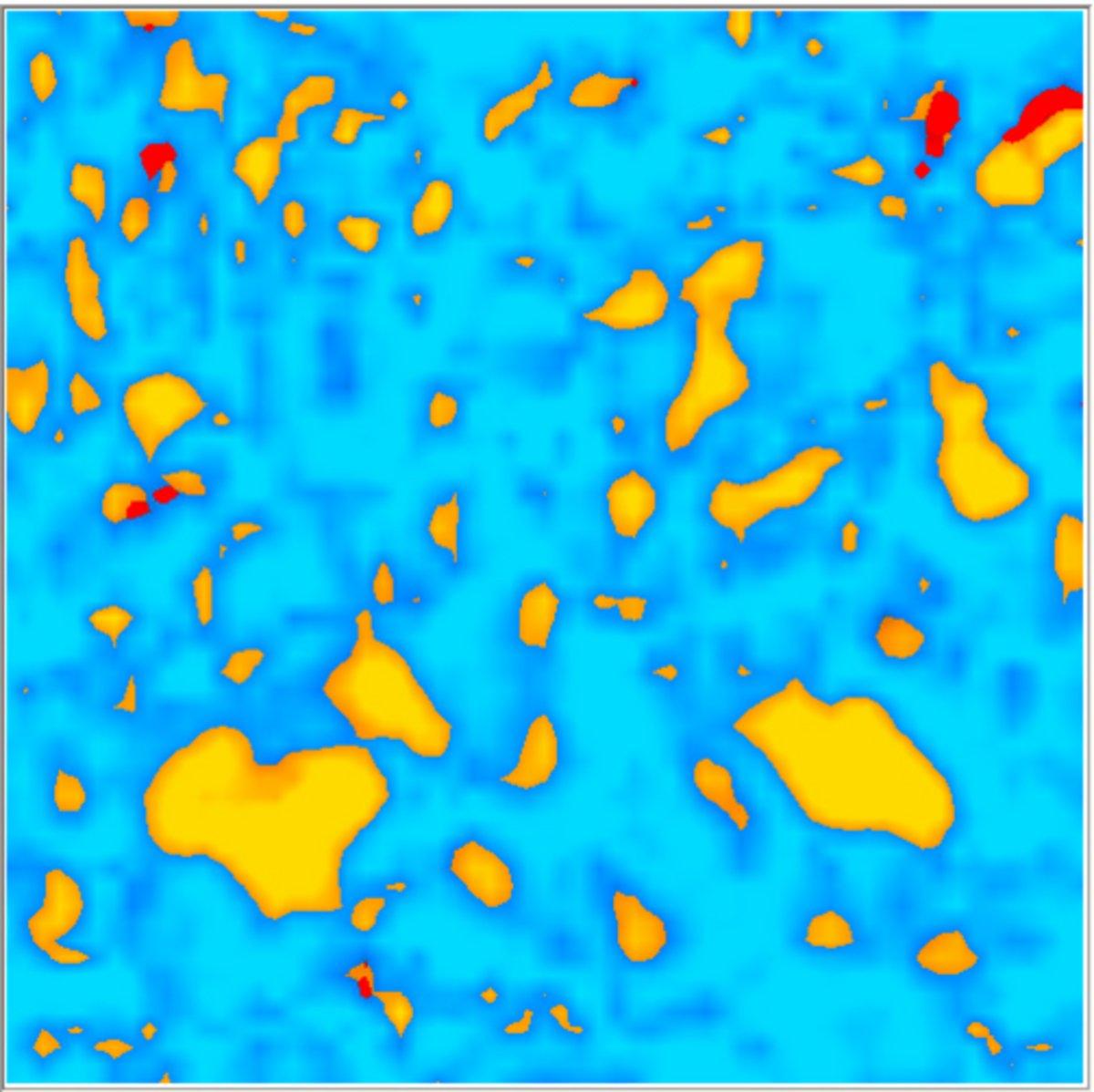

Raman image LiCoO2 cathode after a cycling process.

The Raman map recorded on the cathode after the charge/discharge process clearly shows the presence of Cobalt dioxide.

The Lithium-ion batteries (LIB) are of a great interest for many years as they are a rechargeable type of batteries, contrary to Lithium batteries. They are widely used in all kind of portable electronic devices or cordless tools, and they are used in newly developed electrical cars. As the need for power of all this devices is growing with their complexity, the performances of Li-ion batteries become an issue.

These performances will be influenced by the state of the cathode and the anode. During charging and discharging process the lithium ions travel from one electrode to the other (through the electrolyte) which induces the structural changes of both materials. Ideally all observed changes are reversible, but in some cases, the charging/discharging process can provoke irreversible changes in cathode or anode.

Raman spectroscopy gives a direct answer about structural changes occurring in analysed materials. Being contactless and fast, it does not influence the samples and in case of batteries, allows real-time analysis during charge/discharge cycle. Easy-to-use, but still information-rich, Raman spectroscopy is an excellent tool on several analysis levels, from various R&D needs to automatic quality control measurements.

Application downloads:

PDF
1.29 MB
thumbnail
Raman Spectroscopy Applied to the Lithium-ion Battery Analysis
The application note explains how the Raman Spectroscopy can be helpful in the analysis of cathodes and anodes in Li-ion batteries. Today’s state of art of technology requires more reliable, more efficient and powerful energy sources. Lithium-ion batteries are thus of high interest. Raman spectroscopy adapts to the different stages of life of these batteries, such as the characterisation of new materials for more flexible systems, failure analysis; but also more standard analysis of used material during charge/discharge process, including structural and electronic properties, and even robust, automated QC tests.
