Graphene

Where does graphene come from and why study it?

Graphene occupies a pivotal position in the realm of advanced materials, or 2D materials, playing a huge part in a new era of innovation and technological advancement.

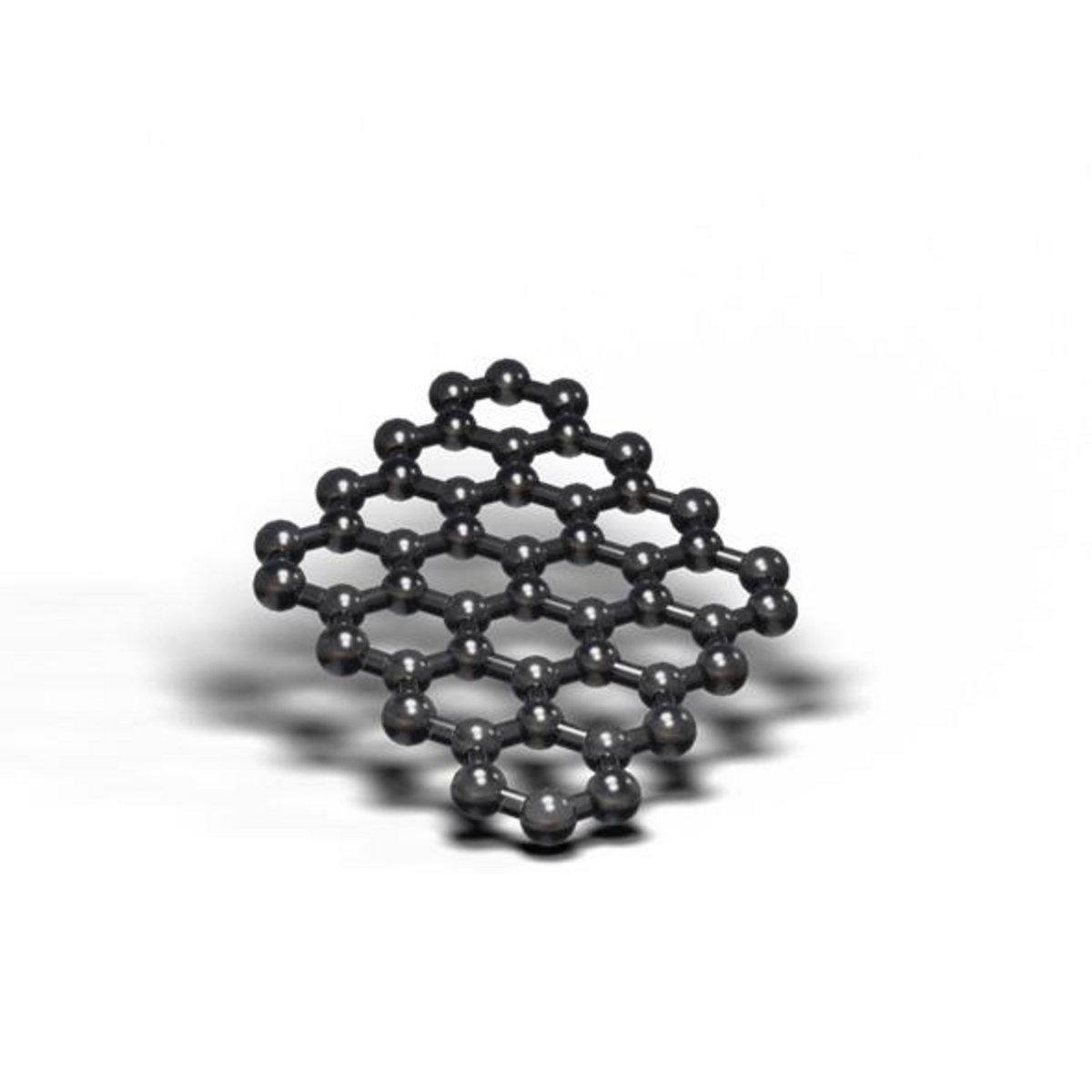

Graphene is a single layer of carbon atoms arranged in a two-dimensional honeycomb lattice, resembling a thin, but durable, sheet. While it occurs naturally in small quantities, most of the graphene used in research and applications is produced through various synthetic methods.

The ability to manipulate graphene at its atomic level creates endless possibilities in diverse fields. Graphene’s exceptional properties, including its strength, conductivity, flexibility, and thermal conductivity, are revolutionizing industries like electronics, energy storage, and biomedical applications.

Scientists are studying graphene to unlock its full potential and use it in advanced materials, which will help us make progress and innovate for a sustainable future.

Resources

Graphene webinars

Fast Raman Mapping on Graphene

See how ultra-fast Raman mapping can be used to analyze graphene for number of layers and defects.

Precise Editing on Graphene Surface

Presented by Prof. Zhengzong Sun, Fudan University, Shanghai, China.
In this presentation we would like to share some of the recent editing strategies we have been exploring in our group.

Graphene application notes

TERS Characterization of Graphene Nanoribbons

This application note reports on the TERS nanocharacterization of graphene nanoribbons (GNRs) fabricated by electron beam lithography. The chemical nanoresolution achievable by TERS reveals the presence of amorphous carbon at the edge of the GNRs and locates organic residues. TERS can be considered as a valuable tool for characterizing nanopatterned graphene, an essential step for the development of graphene-based nano-devices.

Correlated TERS and KPFM of Graphene Oxide Flakes

AFM-Raman and its TERS mode are used to show nanoscale surface mapping of structural defects and chemical groups on graphene oxide (GO) flakes with 10 nm spatial resolution. The multi-parameter measurement methodology proposed in this note extends the capability of TERS allowing a direct correlation of local chemical composition and physical properties at the nanoscale not only for 2D materials but for almost any sample surface.

TERS Characterization of phospholipid bilayers and detection of nanoparticles

This application reports on TERS characterization of binary phospholipid bilayer systems deposited onto a gold coated coverslip. Such samples are used as model samples for directly and chemo-selectively visualizing the distribution of a lipid constituent at the nanometer scale.

The recent development of side-illuminated TERS analysis even provides the possibility to investigate the behavior of graphene-based structures under device operation.

A Raman map of a graphene sample on a SiO2/Si substrate.

Graphene is a new nanomaterial which may partially replace silicon in microcircuits and computer chips in the future. In order to better understand its quality characteristics, fast reliable techniques that deliver the right property measures are needed. Raman spectroscopy has emerged as a key technique for studying this exceptional material.

Graphene oxide is a nanocarbon material with a high aspect ratio and a high surface area with a thickness of about 1 nm and a sheet length of several to tens of microns.

HORIBA Solutions

Discovering graphene's potential requires precise evaluation. HORIBA offers a range of advanced tools tailored for graphene characterization, from Raman spectroscopy, providing insights into graphene's structural properties and defects, to atomic force microscopy (AFM) to obtain precise imaging and measurement at the nanoscale. HORIBA's solutions empower researchers to unlock graphene's full potential. Whether analyzing electrical properties, thermal conductivity, or mechanical strength, HORIBA's state-of-the-art instruments deliver accurate data, driving advancements in electronics, energy, and beyond.
