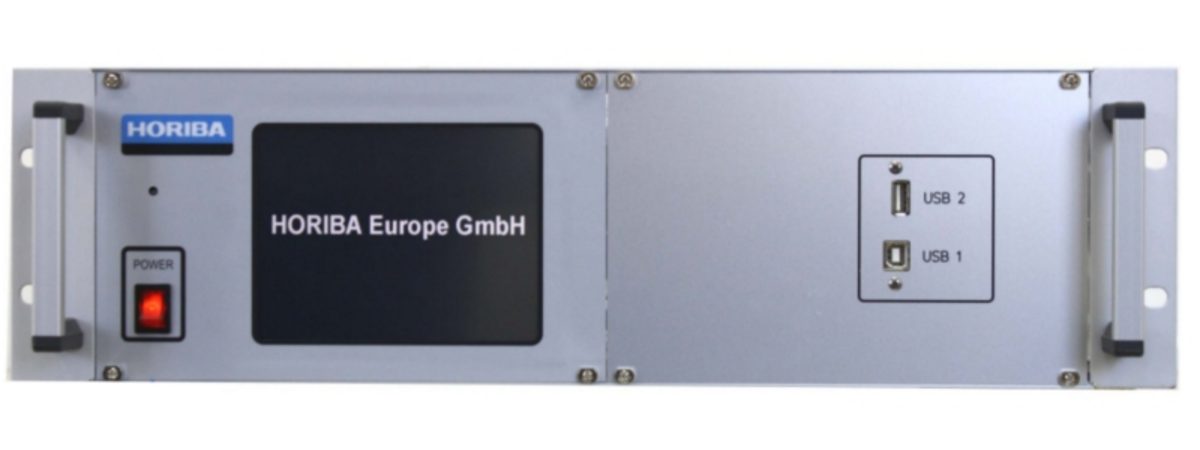

APMC-370 Air Pollution Multigas Calibrator

Air Pollution Multigas Calibrator

Multigas Calibrator for AP Analyzers

Dilution of gases with high accuracy and precision requires high quality MFC’s, especially for high dilution ratios and ranges. Consequently HORIBA’s APMC-370 is equipped with digital MFC’s. These MFC’s are factory calibrated, optional also with a special Polynomial Calibration. HORIBA Europe‘s APMC-370 is designed to calibrate gas analyzers manually, remotely controlled or automatically. It is installed in air pollution monitoring stations for quality assurance in the laboratory and also in the production of gas analyzers.

A special feature of HORIBA’s APMC-370 is the big size touch screen panel, for ease of operation. Characteristic of the operation of HORIBA’s APMC-370 is the intuitive, simple and user friendly menu (for instance control of flow rate: µg/m³, mg/m³, ppb, ppm, automatic cycles etc.) Via the touch screen it is e.g. possible to enter span gas concentrations or to start automatic routines like multi point calibration cycles.

Routine sequences like calculating and adjusting span gas concentrations as well as complex flow patterns for multi point calibration cycles can be stored and easily activated. All functions are controlled by an internal CPU with a state-of-the-art 32-bit operating system. This internal microprocessor continuously calculates and displays the final gas concentrations in the selected units (µg/m³, mg/m³, ppb or ppm). Adjustment, monitoring and regulation of flow rates are done fully automatically. These cycles are programmed in the unit’s memory, thus time spent setting up calibrations on-site is minimized.

All critical operational parameters are monitored; any failure message will be displayed and transmitted via the interfaces. Integrated data logger: During multi point calibration cycles, the span gas concentrations switch automatically with the integrated data logger stores storing continuously the data of the connected gas analyzers. Afterwards data can be transferred to a standard browser via Ethernet connection for further evaluation.

HORIBA Europe’s APMC-370 is a modular system and can be adapted and upgraded any time to accommodate most of customer’s requests.

Features
Specifications

Fullfills the requirements of the latest EN-Norms especially in respect to the linearity check
Exceeds the US EPA requirements
Measurement methods according to international standards
Microprocessor controlled with touch screen LCD display
Precision of span gas concentration : better than 1%
Linearity of span gas concentration : better than 1%
Multipoint Calibration : 8 individually adjustable cycles, each with up to 20 calibration points
Each calibration cycle runs also automatically
Both 19” rack mounted version or Portable version
Options:
1. Additional mass flow controllers ( max. 8 )
2. Ozone oven for the calibration of Ozone analyzers and / or Gas Phase Titration (GPT)
3. Internal zero gas calibration system
4. Permeation oven

Principle of test gas production	via dilution
Accuracy	<±2% reproducibility
Optional: O₃ generation	Internal O₃ via a UV tube in a thermostatically controlled enclosure Maximum concentration ±500ppb at 1l/min
Temperature	From 40°C to 75°C adjustable Preset 70°C for UV chamber
Regulation	via PD controller with PT100 sensor
Accuracy	0,1°C
Setting the target temperature / optional	via HMI (Human Machine Interface)
Display of actual temperature / optional	On the HMI
Gas flow control calibration gas	1x Digital Thermal Mass Flow Controller (MFC) for standard flow Optional: 2x Digital Thermal MFCs for dynamic flow
Gas flow control dilution air (zero gas)	1x Digital Thermal MFC
Accuracy of the MFC	± 0,8% of current value plus ± 0,2% of FS
Reproducibility of MFC	<0,2% of reading
Pressure sensitivity	0,1% /bar, typical for N2
Inlet pressure	2bar
Flow range calibration gas	5-50ml/min and 25-250ml/min
Flow range zero gas	0,08-5l/min
Control time for 98% value at maximum set point jump	3 to 5 seconds
Stability control	<±0,1%FS
Warm-up time for best result	30min
Flow display	via HMI
Housing	19" Rack, 3HU
Display / Operation	via HMI Touch sensitive LCD screen on the front panel (640x480 pixels)
No. of Inlets	Depending on the configurtion, 1x to 8x max.
Test gas cylinder inlet connection	Swagelok 3mm
Test gas outlet connection	6mm screw PVDF
Zero gas connection	6mm screw PVDF
Power supply	110-230V, 50-60Hz
